LoriotPro WEB server use an ISAPI interface to PHP for accessing MySQL Database. PHP is a widely-used general-purpose scripting language that is especially suited for Web development and can be embedded into HTML. PHP also provides a complete and native set of function that allow you to access MySQL Database.
Using ISAPI function calls, Web pages can invoke programs that are written as DLLs on the server, typically to access data in a database.
When a WEB page is displayed by the LoriotPro WEB server and if PHP script are embedded in this page, they are frowarded to the PHP interpreter that execute the script. Most of the Scripts that we provide performs access to a MySQL Database.
The following daigram display the component of the infrastructure
If you do not use the EASYphp installation package and you want to install php only follow this steps:
Download the PHP program (installation is not really necessary, you need only that dll files and the ini files)
We will work with PHP version 4.
Download the current PHP zip package (php-4.4.0-Win32.zip) and unzip it in the c:\php directory for example
Copy the file php4isapi.dll to the LoriotPro /bin/isapi directory
Remark: You should find this php4isapi.dll file in the php\sapi directory after the unzipping of php
Check if the file php4ts.dll is present in your windows system directory (e.g. in c:\windows\system32). If not, copy it from your php directory to this windows system directory)
Edit the php.ini-dist file.
You will then have to save it with the filename:c:\windows\php.ini

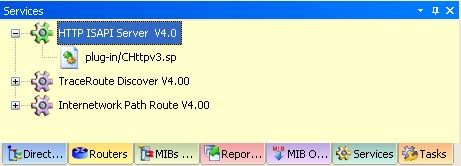

On LoriotPro check that the WEB server allow access to PHP with ISAPI
Right click and open the properties windows
Check that Permit direct PHP is allowed
Scripts that we provide use a defaut unser and password setting. You whould check that these settings are correct with you Database access security settings
You might have to modify the l_connection_data.php3 file located in /bin/www/www and set the right parameters.
File : l_connection_data.php3
<?
$MySQL_Host="localhost";
$MySQL_User="root";
$MySQL_Passw="";
$db="loriotpro";
/*
if (! @$cc=mysql_connect("$MySQL_Host","$MySQL_User","$MySQL_Passw"))
{
echo "Unable to establish the connection at ",$MySQL_Host,"<br>";
exit;
}
*/
?>
Remark : These scripts could be used by other HTTP servers than the one provided with LoriotPro. The Apache server has been tested successfully.
Warning : The HTML and PHP scripts provided are only
examples. Security holes that could be link to the use of these files remain
possible.
Access the LoriotPro WEB Remote console and enter http://localhost:8010/www/test.php as link.
The address of the server could be different from localhost:8010 if you have installed the server on another port.
This PHP script should display PHP information if PHP is well installed and working.
Adding PHP extensions (option)
If you want to add scripting feature to the WEB server and need to use PHP extension, you will want to install some extensions for added functionality.
You will need to change the 'extension_dir' setting to point to your php-install-dir, or where you have placed your 'php_*.dll' files. ex: c:\php\extensions
Choose which extensions you would like to load when PHP starts. It is advisable to first get PHP working and tested without any extensions before enabling them in php.ini.
The following table describes some of the extensions available. You can choose which extensions you would like to load when PHP starts by uncommenting the: 'extension=php_*.dll' lines in php.ini.
| Extension | Description | Notes |
|---|---|---|
| php_bz2.dll | bzip2 compression functions | None |
| php_calendar.dll | Calendar conversion functions | Built in since PHP 4.0.3 |
| php_cpdf.dll | ClibPDF functions | None |
| php3_crypt.dll | Crypt functions | unknown |
| php_ctype.dll | ctype family functions | None |
| php_curl.dll | CURL, Client URL library functions | Requires: libeay32.dll, ssleay32.dll (bundled) |
| php_cybercash.dll | Cybercash payment functions | None |
| php_db.dll | DBM functions | Deprecated. Use DBA instead (php_dba.dll) |
| php_dba.dll | DBA: DataBase (dbm-style) Abstraction layer functions | None |
| php_dbase.dll | dBase functions | None |
| php3_dbm.dll | Berkeley DB2 library | unknown |
| php_domxml.dll | DOMXML functions | Requires: libxml2.dll (bundled) |
| php_dotnet.dll | .NET functions | None |
| php_exif.dll | Read EXIF headers from JPEG | None |
| php_fbsql.dll | FrontBase functions | None |
| php_fdf.dll | FDF: Forms Data Format functions. | Requires: fdftk.dll (bundled) |
| php_filepro.dll | filePro functions | Read-only access |
| php_ftp.dll | FTP functions | Built-in since PHP 4.0.3 |
| php_gd.dll | GD library image functions | None |
| php_gettext.dll | Gettext functions | Requires: gnu_gettext.dll (bundled) |
| php_hyperwave.dll | HyperWave functions | None |
| php_iconv.dll | ICONV characterset conversion | Requires: iconv-1.3.dll (bundled) |
| php_ifx.dll | Informix functions | Requires: Informix libraries |
| php_iisfunc.dll | IIS management functions | None |
| php_imap.dll | IMAP POP3 and NNTP functions | PHP 3: php3_imap4r1.dll |
| php_ingres.dll | Ingres II functions | Requires: Ingres II libraries |
| php_interbase.dll | InterBase functions | Requires: gds32.dll (bundled) |
| php_java.dll | Java extension | Requires: jvm.dll (bundled) |
| php_ldap.dll | LDAP functions | Requires: libsasl.dll (bundled) |
| php_mhash.dll | Mhash Functions | None |
| php_ming.dll | Ming functions for Flash | None |
| php_msql.dll | mSQL functions | Requires: msql.dll (bundled) |
| php3_msql1.dll | mSQL 1 client | unknown |
| php3_msql2.dll | mSQL 2 client | unknown |
| php_mssql.dll | MSSQL functions | Requires: ntwdblib.dll (bundled) |
| php3_mysql.dll | MySQL functions | Built-in in PHP 4 |
| php3_nsmail.dll | Netscape mail functions | unknown |
| php3_oci73.dll | Oracle functions | unknown |
| php_oci8.dll | Oracle 8 functions | Requires: Oracle 8 client libraries |
| php_openssl.dll | OpenSSL functions | Requires: libeay32.dll (bundled) |
| php_oracle.dll | Oracle functions | Requires: Oracle 7 client libraries |
| php_pdf.dll | PDF functions | None |
| php_pgsql.dll | PostgreSQL functions | None |
| php_printer.dll | Printer functions | None |
| php_sablot.dll | XSLT functions | Requires: sablot.dll (bundled) |
| php_snmp.dll | SNMP get and walk functions | NT only! |
| php_sybase_ct.dll | Sybase functions | Requires: Sybase client libraries |
| php_yaz.dll | YAZ functions | None |
| php_zlib.dll | ZLib compression functions | None |
