The Health Control Center
The Health Control Center window displays the status of selected objects. This screen allows you to see at a glance the health of a complete country, organization or network by a single click in the directory tree.
The object statuses are periodically refreshed, which gives you permanent control over every part of your information system and network.
In addition, a dedicated tool bar gives you the ability to hide unwanted or superfluous information and thus restrict the display to the most important indicators.

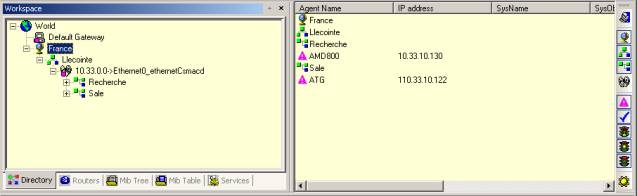

Health Control Center showing the status of the
France container objects.
In the above screen capture, a set of objects located under the France directory branch is displayed in the Health Control Center. Hosts are displayed with their current status represented by different icons and some useful information.
Table and icon in the Health Control Center
| Icon |
Functions |
Remark |
| |
Force the refresh of the Health Control Center window. |
Accessible from the tool bar only |
| |
Display a filter on the Country object. |
|
| |
Display a filter on the Organization object. |
|
| |
Display a filter on the Organization Unit object. |
|
| |
Display a filter on the Network object. |
|
| |
Display a filter on the unsupervised objects |
This icon specifies that this host is not supervised by LoriotPro, with neither ICMP (ping) nor SNMP. |
| |
Display a filter on the host objects that are only reachable by ping and not SNMP. |
|
| |
Working host status Display a filter on the host objects, supervised in SNMP. |
All SNMP requests have successful request. |
| |
Warning host status Display a filter on the host objects, supervised in SNMP |
Status after three unsuccessful requests. |
| |
Error host status Display a filter on the host objects supervised in SNMP and in error. |
Status after four unsuccessful requests. |
| |
Display a filter on task objects. (plug-in, MRTG ...). |
This icon is used to show the status of host-associated tasks. Tasks should be written beforehand to support this function. |
Additional information provided in the HCC window
| Name |
Information |
| Agent Name |
The agent name of the host or of the container with the associated icon. |
| IP Address |
IP host address |
| SysName |
The SNMP name of the host if available (provided by the device) |
| SysObjectID |
The SNMP agent provider name if available (provided by the device) |
| Mac Address |
The physical address of the network interface if available (provided by the device) |
| User 1 |
User-defined information Remark Consult the chapters that follow to learn how to set up this parameter. |

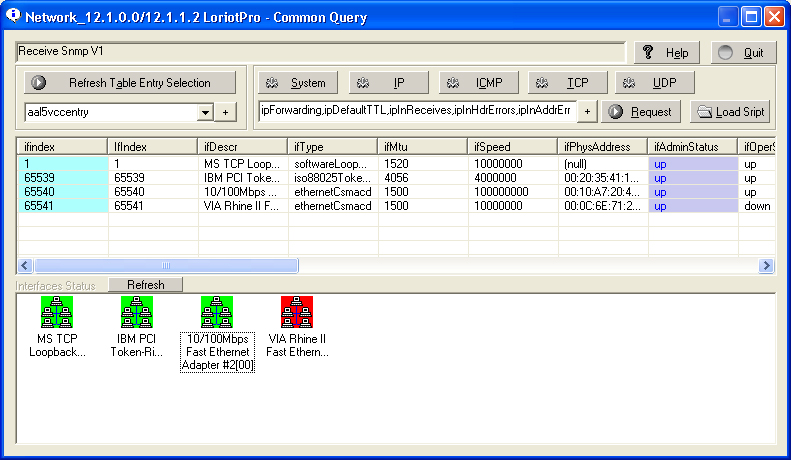

Double-clicking on a line of the HCC automatically starts the ‘Common Query’ window.
Host
Query window called from HCC

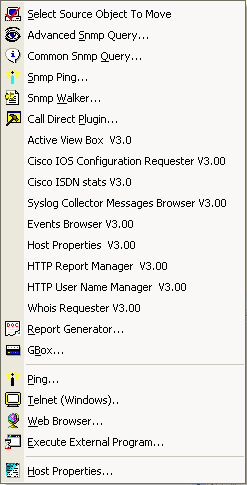

Right-clicking on a Health Control Center object selects it in the directory tree and shows the context menu.
Context menu of a host object selected in the Health Control Center
Warning
If the selected object is not a host, the context menu that
appears is relative to the last current default host selected in the directory.
The Health Control Center functions are explained in the tools chapter.
