The router object

Introduction

The router object has no real existence as an object in the Directory. A router is a list of hosst, one for each of its interfaces, more precisely one for each of its IP addresses.

Each host object has a RouterID property that identify the list, a virtual router,  to which it could pertain. This property is a reference IP address, generally the first host IP address of the list. LoriotPro uses the icon property of this reference host to display the router in the map.

To exist, a router should have at least one interface, Any host defined in the Directory could become an interface (entry of the list) of a router. Router are not displayed in the Directory therefore they have their own tree, the Router tree.


The workspace router tree tab

In the example above the C2500-11-7 router has two interfaces, only one (10.33.10.121) is activated and supervised.

Router object manual creation

Routers are automatically created by the Discover process which detects from the gathered SNMP information, the hosts to include in a router interface list. However, It is possible to manually create a router. You should first create the hosts associated to each interface. If the router has interfaces without IP address, you cannot administer them directly from LoriotPro, though you could gather information about them by SNMP requests sent to activated interfaces.

A router object could be inserted either from ‘the router tree’ or from the contextual menu of the  ‘Internetwork  Map’.

Remark: The router insertion from the Internetwork map contextual menu allows you to put the router icon directly at the desired position in the map.

Insertion from the router tree

To insert a new router, either click with the right mouse button in the router tree window, the contextual menu appears or by selecting the ‘Add Router’ option from the main menu :

Routers>Add Router


Router insertion with the contextual menu of the router tree


Router insertion from the main menu

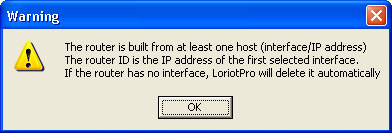

An informational message notifies you that the router should have at least one interface and this one should be an existing host in the Directory.

To continue, click OK.

A window appears with a list of hosts available in the Directory and that are not used as interfaces of other routers. If the IP address of the interface that you want to set, are in the list, just select it by a click and then click OK else Cancel.

In the example below, we wanted to create a router from nothing thus we select Cancel button.


List Session Module

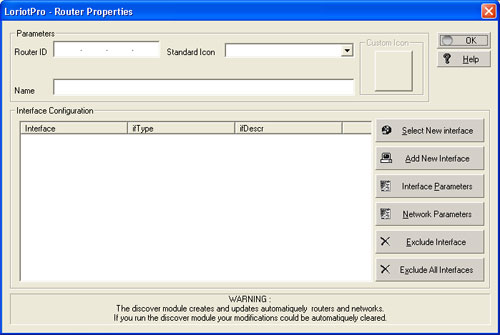

The router insertion window below appears with all fields empty.


Router properties window

As example, we will create a router with two interfaces,

One with the 10.33.10.140 IP address located in the 10.33.10.0 network, the second with the 192.168.0.1 IP address located in the 192.168.0.0. network.

Both interfaces have no existence as hosts in the directory therefore we should create them.

To perform that, we click on the ‘Add New Interface’ button.

The host insertion window appears. We fill the fields as below.


Insert host dialog box

The first host is created with simple options; we could modify them after while. We selected the option ‘Add this host to an existing Directory Tree (Network)’ to force the creation of the object in the Network container Object. We validate the new host by a click on the ‘Add Host’ button.

We insert the new host for the interface 192.168.0.1 by the same way.


Second host creation (router interface)

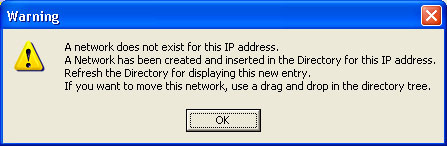

The network 192.168.0.0 does not exist in the Directory, the software notifies you that it will be created.

We have to enter the network properties.


network object creation

Click on OK, and the confirmation window notifies you that the host 192.168.0.1 is the second interface of the router.

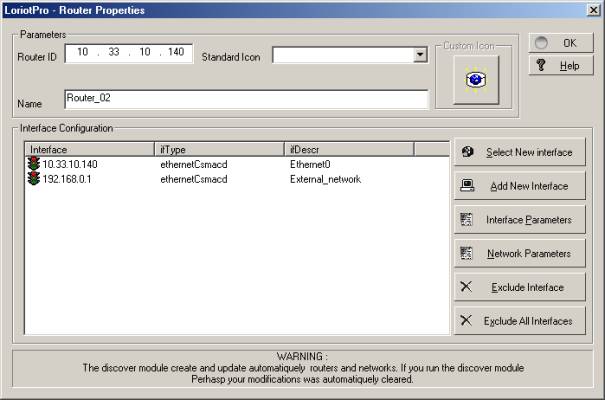

Back to the router propertie window, we see that the list is made of two interfaces, the created hosts.

The IP address used as  RouterID for both hosts, is 10.33.10.140. We could now give a name to the router (Router_02) and setup the other parameters.

Remark: By double clicking on the IP address in the list, the host advanced property windows appears.

At last, if we look at the router tree window, we see the new Router_02 object.

Remark: In our example, both interface of the Router_02 are administered with SNMP. If after four consecutive requests without answers, the interface status becomes red to notify you that the router is not longer responding. The color of the router object or icon is the most critical status of one of its interfaces.


Router_02 in red status

In the example above, the router_02 is red because the interface router_backbone is red and the other yellow. The router tree window is regularly updated to help you to take efficient and reactive actions when something goes wrong.

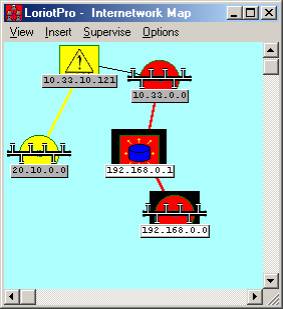

In the screen capture below, we see the router icon in red.

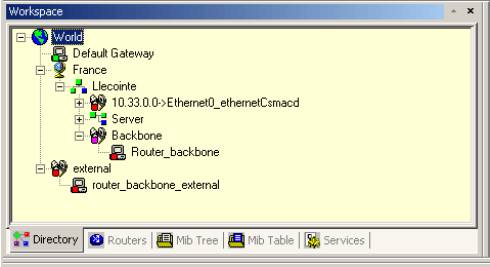

The associated hosts have been inserted by the Discover process.


Hosts inserted in the Directory

Advanced router configuration

To configure an existing router, you can use the contextual menu, go to the router tree, right click on the router and choose Properties.

Or select the router by a left click in the router tree and then, from the main menu, choose :

Routers>Properties…

Remark: To access the provided configuration options, you should first select an interface in the list.



Table of advanced router properties

Paramètres

Explications

Router ID

This parameter could not be modified, it is common to all interfaces in the list.

Standard Icon

Allow you to change the default icon.

Name

Allow you to give a name to the router

Select New Interface

Open he list of available host in the Directory

Add New Interface

Call the host creation window

Interface parameters

Select an interface in the list, the advanced host configuration window is open.

Remark: A double click on the IP address as the same effect.

Network parameters

Select an interface in the list, the network configuration window is open.

Exclude interface

Select an interface in the list. The interface is discarded from the list but the host still exist in the Directory.

Remark: Only the routerID of the host is set to 0.0.0.0.

Exclude all interfaces

All interfaces are discarded.

Remark: All host RouterID parameter are set to 0.0.0.0.

Warning: A router could not exist without interface. If you do not insert an interface in the list, the router object will be discarded.

Allows you to select another icon instead of the default.



Direct access from the contextual menu

It is possible to perform specific tasks from the router tree contextual menu.

Table of otpions of the contextual menu

Functions

Explanations

Add Router

Add a router in the tree

Delete Router

Delete the router object (not the hosts) from the tree and from the maps.

Ping

Perform a Ping on the reference IP address, the first in the list called Router ID.

Telnet

Perform a Telnet on the reference IP address, the first in the list called Router ID.

Web Browser

Start your preferred WEB navigator on the reference IP address, the first in the list called Router ID.

Refresh Tree

Perform an immediate refresh of the router tree windows.

Properties

Call the router property window.

Remark: A double click on the router performs a Telnet to the reference IP address but a double click on an interface call the advanced host property window
