Filter graphic view

LoriotPro displays the filters under the filter tab of the Event Manger window. From there, the administrator could see and modify the current filter loaded in memory.

The Traps that are known (Loaded MIB) have a blue check the others have a red cross.

Warning: Trap with a red cross could not be filtered because the associated MIB file are not loaded in memory. When you load new MIB with the compiler the Trapfilter is automatically updated and the red cross disappears.

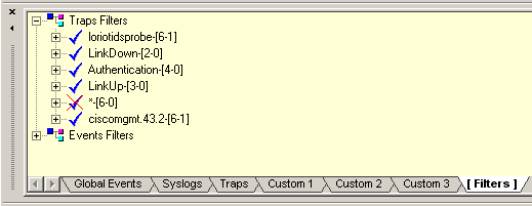

Traps filter tree

Warning: If you modify the file trapfilter.txt manually, it is necessary to load it in memory by doing :

From the main menu

Configure>Traps/Events Filters…>Refresh Traps Filter….


Trap filter refresh

Or from the contextual menu [Filter] :

Refresh Traps Filter

Trap filter graphic view

The window [filters] allows the visualization and the configuration of Trap filters and their associated actions.

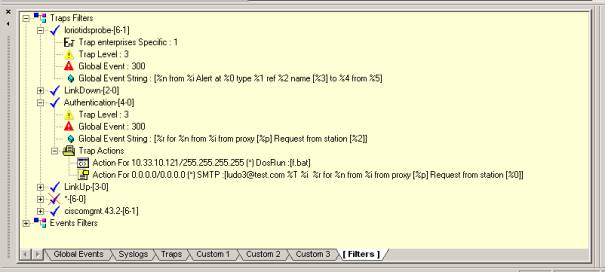

Traps branch of the filters window

Event filter graphic view

The [filters] window allows the visualization and the configuration of Event filters and their associated actions.

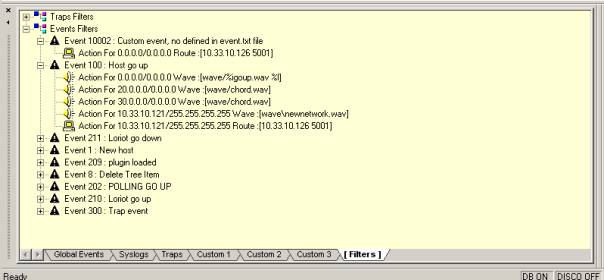

Events branch of the filters
window

Table of event and trap associated icons

Icon

Legend

Node in the tree

Le Trap is recognized by LoriotPro

Le Trap is not recognized by Loriot Pro. The MIB file with the trap definition should be compile

The specific number of an « enterprise » Trap

Severity level of the Trap.

Trap associated Event number.

Message and reference generate by a forwarded Trap to the Global Event window.

Node of Event filter type

Node in the tree  of trap associated action type.

Action :  Wave (play a sound)

Action : Winrun (start a window program)

Action : smtp (send a E-mail)

Action : mapi  (experimental)

Action : dosrun (start a DOS program)

Action : syslog (send a Syslog message)

Action : trap (send a trap)

Action : Custom

Action : nul

Action : route (reserved to event filter)
