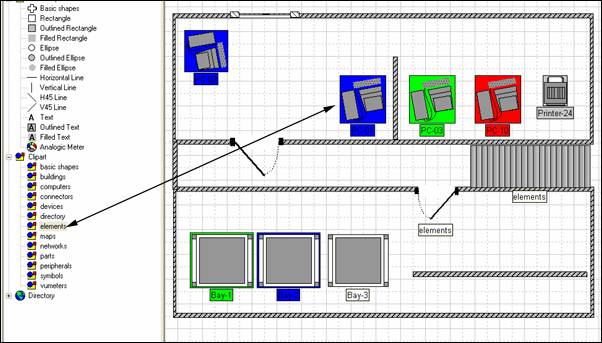

Like we have done before for opening the Paris Detailed view we could add a detail view for a Building. In our example a double click on a building from the preceding view could open the internal view of the Building or from specific rooms. Use the clipart object belonging to the elements sub directory for building such views.
The elements are common objects that could be found in a building like walls, doors, windows and stairs. This element objects like any clipart object have to be dragged and dropped to the view.
When the topological view is built, you could add dynamic objects like PC, printers, Bays, routers and switch.

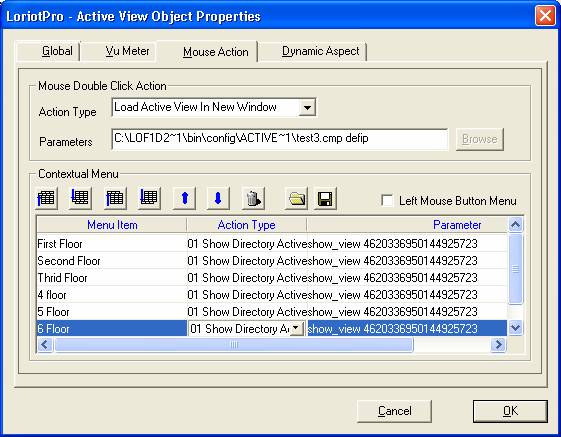

In the Paris detail preceding view, we define a set of option for the contextual menu of the building. Each option jump to the Active view that represents the selected floor. Here after the configuration example.

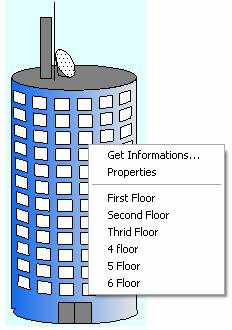

A right click on the object will display the following menu :
