LoriotPro Style Graph

Introduction

This Plugin performs graphs with the results of SNMP requests. The request are sent to the Directory host object to which the Plugin is attached. Some of the LoriotPro menus use it explicitly. It is thus possible to start it from the main menu or from a contextual menu. It is a good example of use of HTTP functions and a JAVA applet within a Plugin.

Plugin LoriotGrapher.slp

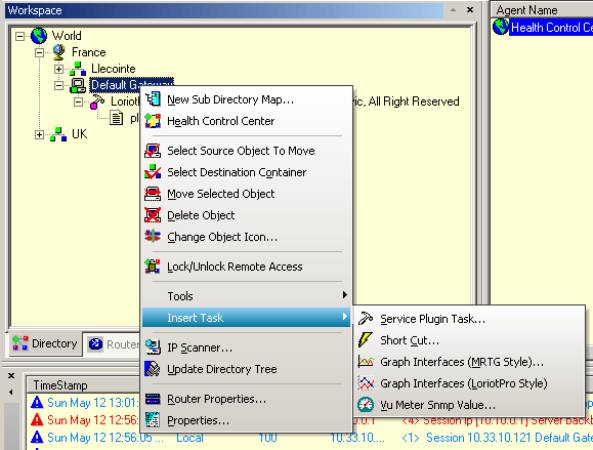

To attach a Plugin to a host, open the host contextual menu:

Insert Task>Graph Interfaces (LoriotPro Style)

Configuration

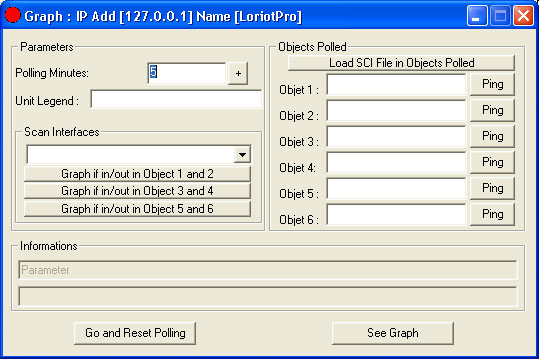

The Plugin is able to display 6 graphs, each of them having an assigned SNMP OID

The OID is set in the fields Object, a Ping button performs a SNMP test on the OID.

Table of parameters

Parameters	Functions
Polling Interval in minutes	The time interval between each polling
Scan Interfaces	This Combo box gather the list of interfaces of the host Once the list displayed, It is possible to set the SNMP object ifinoctets.x ifoutoctets.x of the selected interface in the object 1 to object 6 fields.
	Set the SNMP objects ifinoctets.x ifoutoctets.x in the object field
	This button should be click to activate your settings.

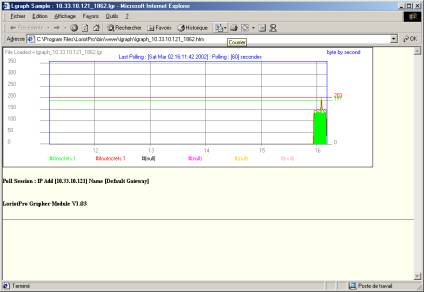

	The Plugin displays the HTML page in your Navigator
