Introduction
to syslog collector
The goal of the Syslog Collector architecture
designed by LUTEUS is to provide a scalable solution for
handling huge quantities of syslog messages and
to help administrators to filter and browse them.
Alarms can be sent on critical or severe messages.With the
syslog collector agent you can collect syslog
messages,
filter them
in real time, browse and search log files. With the syslog
manager provided in LoriotPro you can apply filters
rules on syslog
agents from
a single location.
The Syslog system
provides the transport and storage mechanisms for event
notification messages, in
the form
of Logs. Syslog is a de-facto standard defined
by RFC3164 for logging system events. It was commonly and initially
used by Unix
systems (The unix syslog daemon syslogd),
later on by network devices (router syslog, switch syslog,
firewall syslog). It will be very efficient in a Cisco
device architecture for the collection of PIX syslog and Cisco
syslog
generated by
routers and switches)
The product has been designed based on the following
issues:
- The main issue that system and network managers have
to face is the collection and processing of huge quantities
of Syslog
messages.
- They need to have detailed information of what is happening
in their system and network devices by turning on in-depth
logging facilities.
- They want to receive critical messages immediately but
also want to retrieve non-critical messages at a later
time.
- They want to keep a trace of Syslog messages and be able
afterwards to research specific events that could have
occurred.
- They want to have a centralized system that can collect
Syslog messages or Syslog files without using too
much network
bandwidth.
- They want to manage their Syslog infrastructure from
a centralized manager.
- They want to have access security and control of
the management solution.

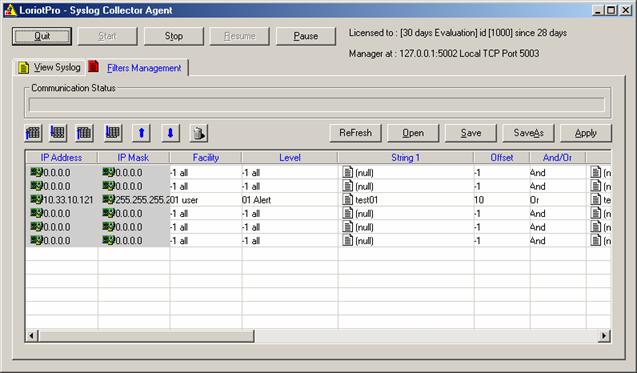

Overview of the syslog console and the
syslog file browser
Syslog collector architecture
description
The architecture is built around two components: the syslog
agents and
the syslog manager. The syslog manager is
a program running exclusively on our
LoriotPro monitoring solution. Syslog messages are collected
by syslog
agents called, in our terminology Syslog
Collector Agents. Syslog agents
are designed to collect a large throughput of Syslog messages
and
to process them according to advanced filtering rules. Filtered
messages can then be displayed on a viewer, the agent taking
on
the role of a simple Syslog server. Messages can be stored locally
in files or forwarded to the central management system. Critical
messages can be sent to the centralized management system either
as LoriotPro proprietary-formatted event messages or as Syslog-formatted
messages. Syslog agents can be cascaded to build a hierarchical
architecture of Syslog message relays.
Syslog agents can be used as a standalone solution
and act as a Syslog server or Syslog relay. Our LoriotPro NMS
and the Syslog
manager are not necessary in this case. Syslog
filtering rules can be defined from the syslog
agent GUI and applied. Actions taken on
conditions defined
in
the syslog filtering rules can be displayed on a viewer, stored
in files or forwarded to another Syslog server.
The Syslog Collector Manager is
responsible for the management of the agents from a centralized
location. Syslog filtering
rules are defined on the manager and pushed to the agent. The manager
is also able to retrieve a filter rule previously loaded onto
an
agent. Syslog filtering rules are stored in local text-only files.
The syslog agent manager is also able to upload
Syslog files previously stored on the agent. The syslog files
can be compressed on the
fly during
uploading, sparing precious bandwidth of WAN links or on-demand
links. The manager works on top of our LoriotPro NMS as a Plug-In
Service.
As we have stated previously, the messages sent by the Syslog Collector
Agents can be in the LoriotPro event format. The LoriotPro Event
Manager receives them and processes them. They are first displayed
in the Event Log window and if necessary, they trigger actions based
on predefined conditions. Actions can send messages, start programs,
play sounds, etc.
A simple view of the concept behind our solutions
is presented below.
Devices with Syslog capabilities (routers, Unix
systems, etc.) are configured to send their Syslog messages to
the
closest Syslog Collector Agent. The syslog agent
filters syslog messages and forwards them either to the LoriotPro
console or
to a Syslog server. LoriotPro
is necessary in order to have centralized management of filter
rules. Filter rules are pushed to the agent after authentication.
The hierarchical and/or distributed concept of
agents allows the administrator to design an architecture that fits
their topological and network constraints. As in our example below
with a two-level hierarchy of agents, Syslog messages are collected
for a predefined area on the second level agents, then the most
critical ones are forwarded to the first level agent for each country
and finally they are forwarded to the central Syslog Server or LoriotPro
Manager. Traffic is optimized and adapted to the network topology,
WAN bandwidth is preserved and unnecessary messages having local
significance are not forwarded to upper levels but stored locally. |
