Introduction
LoriotPro uses an internal host data base named
LDS for LoriotPro Directory Service. The LoriotPro
LDS uses the IP address of the host to create indexes.
In this database, only one host profile (configuration)
is available per host, each host from the point of view of LoriotPro
has only one IP address (multihoming server or router are seen as
multiple hosts). If a host has more than one SNMP agent, LoriotPro
do not have the capacity to handle it.
Examples :
1- A host @IP:10.33.10.121 has a standard snmp
agent linked to the udp port 161 and another one linked to the
no standard udp port 1515.
2 - A host @IP:10.33.10.121 has a standard
snmp agent linked to the udp port 161 using the snmpv1 protocol
and a snmp V2c profile linked to the same udp port 161 used for
specific queries.
3 - A host @IP:10.33.10.121 has a standard
snmp agent linked to the udp port 161 using different community
to access the differents management processes.
Solution
LoriotPro uses an alias stategy to solve this
problem. An alias host is a host with a dummy IP address used to index
it in the LDS. A secondary IP address is set in the profile and is
used in all modules of LoriotPro in replacement of the dummy address.
The use of Alias has some restrictions.
It is not possible to poll a host alias (poll
the direct host).
It is not possible to use a snmpV3 profile
with a host alias (configure the direct host with the snmpv3 profile).
Some plugins are not designed to work with
host alias (test the plugin before to make in production).
Sample :
In the following example, a Cisco router ( viewed
as one host ) at @IP:10.33.10.121 has three different profiles on
a same udp port 161. LoriotPro use the @IP 10.33.10.126 to poll
the router.
1 - one snmp V3 profile (user nouser
noauthentication) more
information to
2 - one snmp V2c profile (community
testv2c)
3 - one snmp v1 profile (community public)
Cisco IOS sample configuration :
snmp-server user nouser noloriotpro
v3
snmp-server group noloriot v3 noauth
snmp-server community public RO
snmp-server community testv2c RO
no snmp-server sparse-tables
snmp-server host 10.33.10.126 version 3 noauth nolecointe
snmp-server host 10.33.10.126 version 2c testv2c
snmp-server host 10.33.10.126 public
First, the host 10.33.10.121 is created in the
LDS container Local for example.
Press "add host" and quit.
After the creation of the host select the contextual menu option
"properties" to configure this host entry.
Select Set SNMPV3 button and input your parameters for snmpv3:
The next step consist of creating an Alias for this host
Create a new host entry with a dummy IP address,
for example 1.1.1.1.
Add the correct parameters for the v2c profile
and add the IP address 10.33.10.121 in the "is alias of"
field. The polling function is not permited for an alias host. It
is possible to set the next hop and enable discover scanning option.
Press 'add host' and answer YES
at the question "add another host.

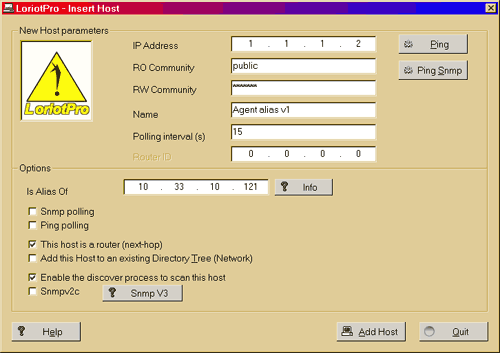

Create the new alias using the IP address 1.1.1.2.
Now, you have three entries in your LDS, corresponding
to your three differents profiles for the same host.
WARNING : Only the first not alias profile should have the Snmp
and ICMP polling option enabled.
If you doubleclick on an alias profile, an error
is detected when the node information module receives the host response.
A dialog box pop up "receive response from bad agent".
This is because the IP address do not match the IP address of the
host entry (it is a security option against spoofing attack) . Just
click OK .
You could now attached Plugin to these hosts
and manage them individually. |
